Shenzhen Y&Y Technology Ltd

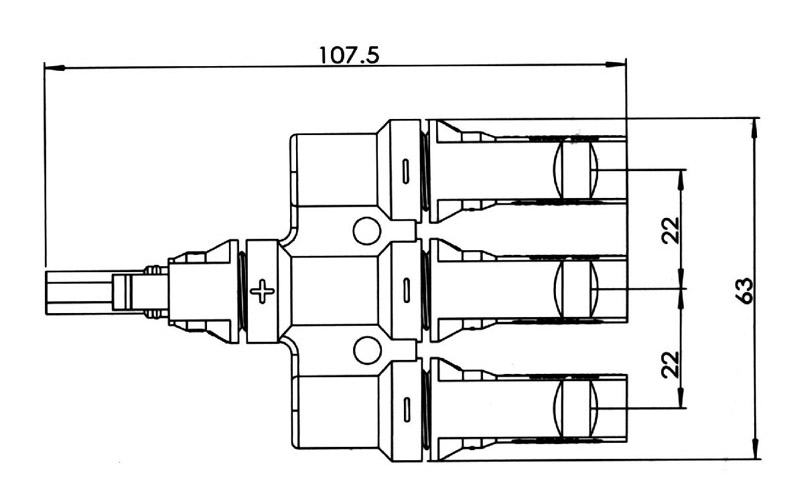

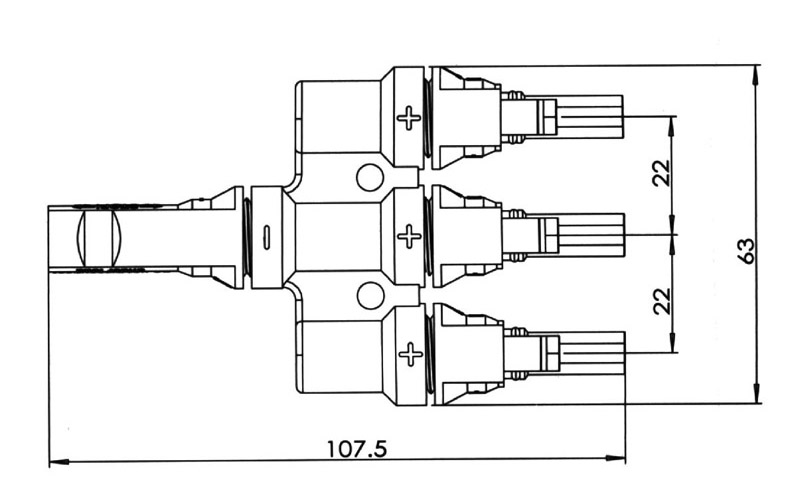

Branch Connector
hits：761
  • Inquiry
  • Detailed
    • Technical data
    Insulation MaterialPPO
    Contact MaterialCopper, Tin plated
    Suitable Current30A
    Rated Voltage1000V (TUV) 600V (UL)
    Test Voltage6KV (TUV50HZ, 1min)
    Contact Resistance< 0.5mΩ
    Degree Of ProtectionIP 67
    Ambient Temperature Range-40°C~+85°C
    Flame ClassUL 94-V0
    Safety ClassⅡ
    Pin Dimensionsφ4mm
